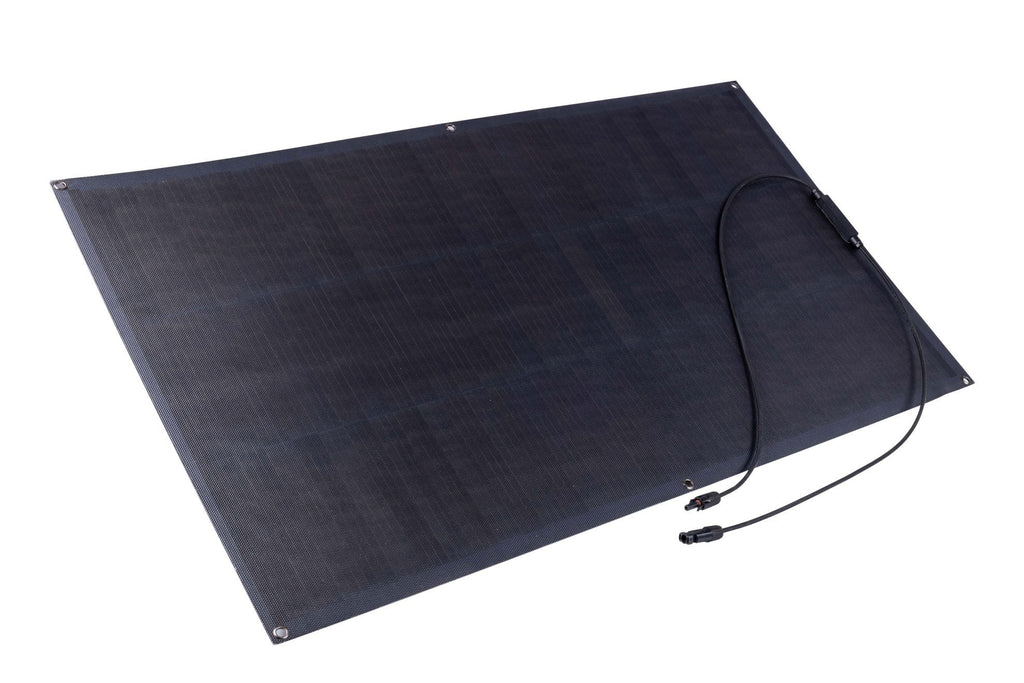

SOLAR PANEL - 110W SEMI FLEXIBLE PANEL

Discover the ultimate eco-friendly power solution for your next camping adventure with Ironman 4×4 Solar Panels. These efficient Solar Panels are built to last, ensuring optimal output and power supply while offering exceptional protection against heat damage. The TPE backing provides a flexible panel, allowing it to be fixed on uneven surfaces.

SHINGLE TECHNOLOGY

The cells are cut into 5 equal parts and connected by sub-strings allowing the cell to bypass shaded areas and maximise power output. Compared to conventional panels, the effect of bad cells is significantly reduced, eliminating the risk of hot spots and permanent damage.

BUILT TO LAST

The premium 7-layer cell construction withstands Australian conditions, offering heat resistance, durability, and increased power supply. Monocrystalline cells are 15-20% more efficient than polycrystalline cells, producing more power in less space. The ETFE layer protects panels from high temperatures, corrosion, and stains.

SUITABLE PRODUCTS

• 20A MPPT Regulator
• M4 Connector Wiring Kit
• Twin Connectors with M & F MC4 Plugs
• 50A Anderson to M & F MC4 Plugs

SPECIFICATIONS

DIMENSIONS: 900 x 633 x 2mm

PRODUCT WEIGHT: 2.15kg

PANEL

FRAME / BACKING MATERIAL: TPE

NO. OF CELLS PER PANEL: 68

CELL COATING: ETFE

CONSTRUCTION: Cells assembled in Shingle format

UV STABILISED (NON FADE): Anti-UV Coating on Face

RATED MAXIMUM POWER: 110W

VOLATAGE @PMAX (VPM): 19.05V

CURRENT @PMAX (VPM): 5.77A

OPEN-CIRCUIT VOLTAGE (VOC): 23V

SHORT-CIRCUIT VOLTAGE (ISC): 6.15A

MAXIMUM SYSTEM VOLTAGE: 600 VDC

MAXIMUM VUSE RATING: 20A

OPERATING TEMPERATURE: -40°C to + 85°C

EFFICIENCY RATE: 20.10%

SOLAR

TYPE: A Grade Monocrystalline Cell - Shingle Assembly

MATERIAL: Silicon

WATT PER CELL: 1.54W

VOLTAGE / AMPERAGE PER CELL: 0.56V / 2.75A

CONNECTIONS

BOX: Junction Box With Internal Diode

CONNECTIONS: MC4

IP RATING: IP68

DIODE: 1 x Bypass

WARRANTY: 5 Years
