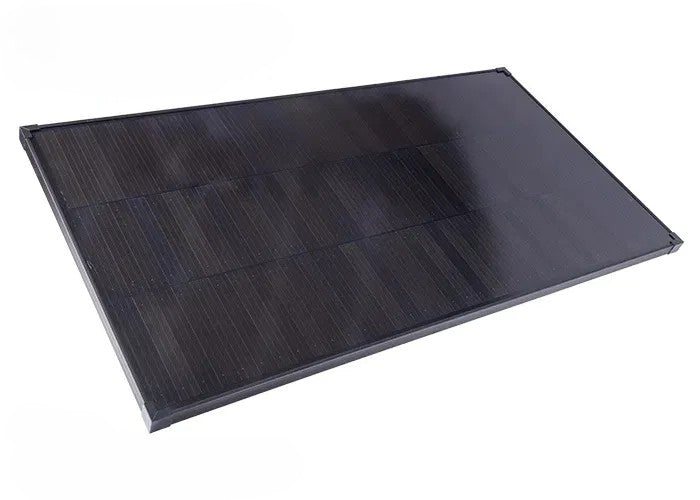

SOLAR PANEL - 210W RIGID PANEL

Introducing the Ironman 4×4 210W Solid Frame Aluminium Solar Panel with Junction Box.

Discover the ultimate eco-friendly power solution for your next camping adventure with Ironman 4×4 Solar Panels. These portable, compact, and efficient panels ensure optimal output and power supply while offering exceptional protection against heat damage.

SHINGLE TECHNOLOGY
The cells are cut into 5 equal parts and connected by sub-strings allowing the cell to bypass shaded areas and maximise power output. Compared to conventional panels, the effect of bad cells is significantly reduced, eliminating the risk of hot spots and permanent damage.

BUILT TO LAST
The premium 7 layer cell construction withstands Australian conditions, offering heat resistance, durability, and increased power supply. Monocrystalline cells are 15-20% more efficient than polycrystalline cells, producing more power in less space. The ETFE layer protects panels from high temperatures, corrosion, and stains.

COMPLETE RANGE
The range features a MPPT charge regulator suitable for use with different battery types including Lithium and AGM, as well as a selection of compatible wiring kits with MC4 and Anderson Plug connections. There is an additional mounting hardware kit suitable for use with rigid panels.

SPECIFICATIONS:

Warranty: 5 Years

Dimensions: 1185x880x30mm

Product Weight: 11.75kg

Frame: Aluminium with Nylon Protective Coerners – Black

Number of Cells per Panel: 136

Cell Coating: Tempered Glass

Construction: Cells Asembled in Shingle Format

UV Stabilised (For Fade): Anit-UV Coating on Face

Rated Maximum Power: 210W

Voltage @PMAX (VPM): 19.04V

Current @PMAX (VPM): 11.03A

Open-Circuit Voltage (VOC): 23.15V

Short-Circuit Voltage (ISC): 11.55A

Maximum System Voltage: 600 VDC

Maximum Fuse Rating: 20A

Operating Temperature: -40°C to + 85°C

Efficiency: 20.10%

Solar Cell Type: A Grade Monocrystalline Cell – Shingle Assembly

Material: Silicon

Watt Per Cell: 1.54W

Voltage / Amperage Per Cell: 0.56V / 2.75A

Connections: Junction Box With Internal Diode and MC4 Connectors

IP Rating: IP68
